project: Standen Hey Bridge Installation

client: Network Rail
location: Clithero, Lancashire
duration: 2 months
value: £150,000

scope of works:

Procurement of FRP composite deck sections
Assembly of the FRP composite road deck

CRL were commissioned by Birse Rail to supply and assemble a fibre reinforced polymer (FRP) composite deck to replace an existing vehicle access bridge over a rail line.

The bridge was designed by Tony Gee & Partners using pultruded FRP sections supplied by Fiberline in Denmark. CRL purchased the materials and assembled the bridge deck near to the site using adhesives to connect the sections. This was a complex assembly requiring two layers of Fiberline sections for the deck and a third layer for the parapet edge. Strict sequencing and quality control was required to ensure the sections were fully bonded.

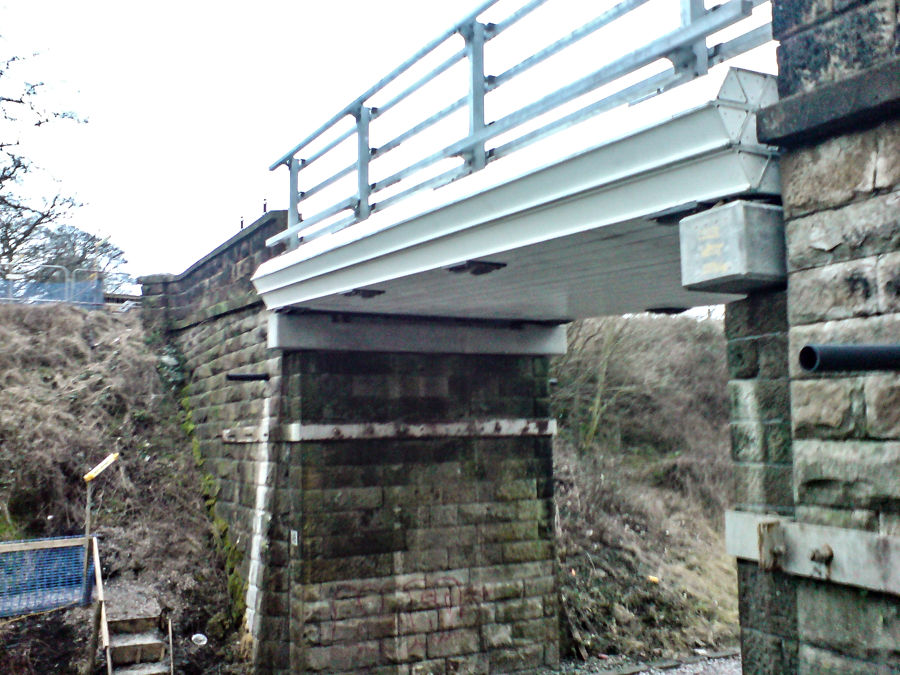

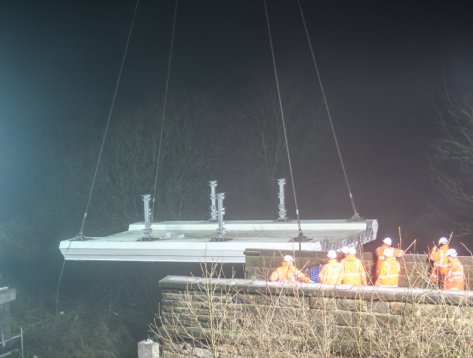

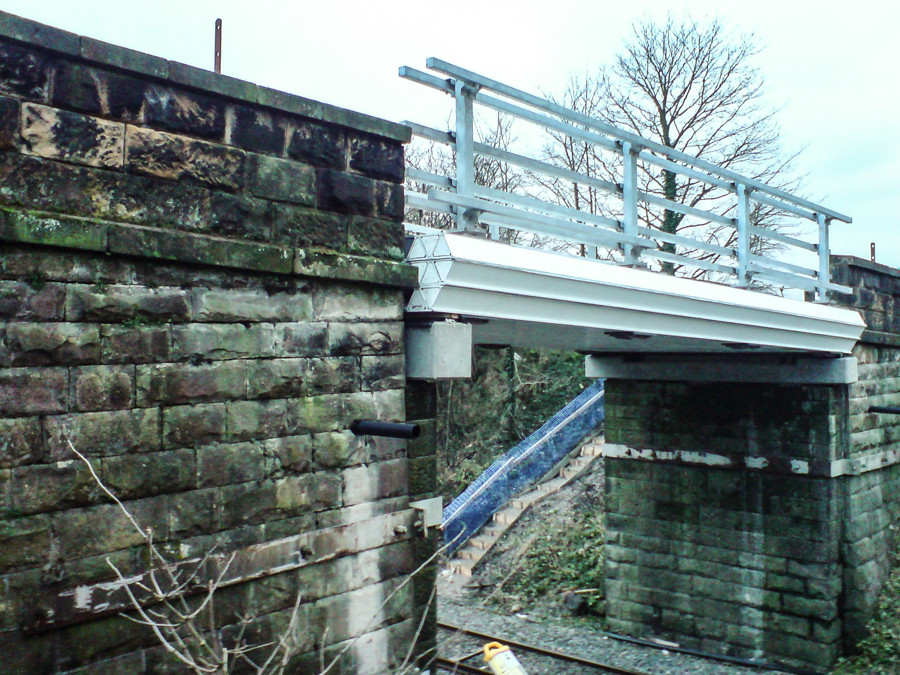

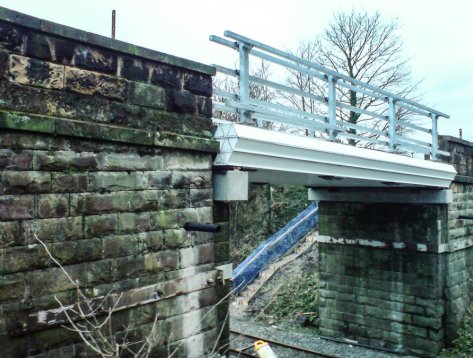

Once the deck was completed Birse Rail transported the bridge to site and installed the bridge during a 9 hour rail occupation period. The overall bridge deck was 10m long, 4.9m wide and weighed 12 tonnes. It was designed to full Eurocode vehicle loadings and was the first fully composite road deck installed over rail in the UK.
